#include <consoleObject.h>

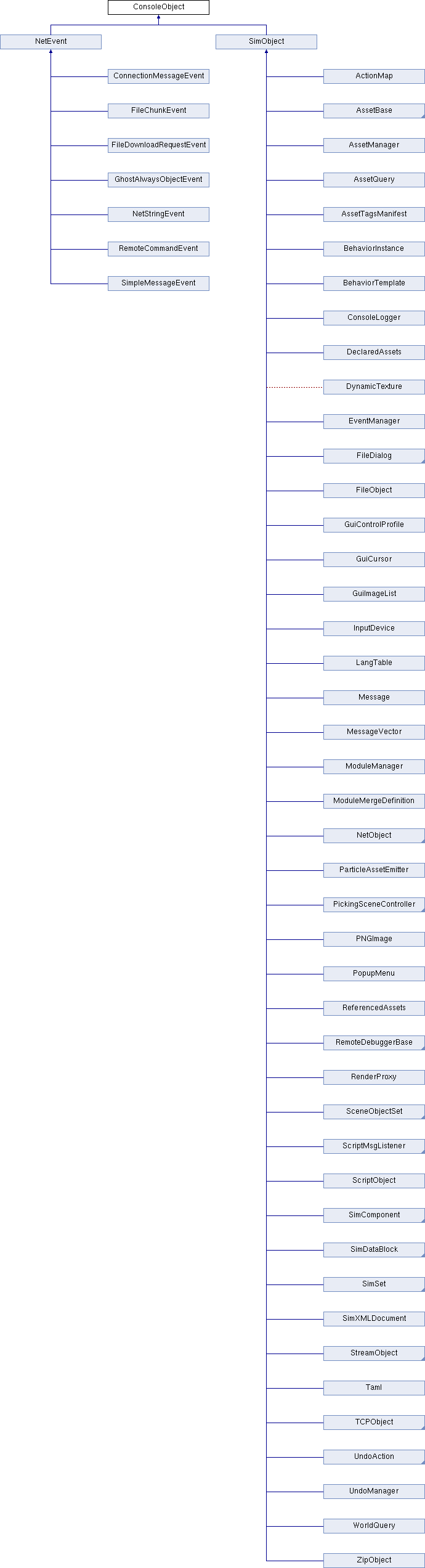

Inheritance diagram for ConsoleObject:

Public Member Functions
const AbstractClassRep::Field *	findField (StringTableEntry fieldName) const
	Get a reference to a field by name. More...

virtual AbstractClassRep *	getClassRep () const
	Gets the ClassRep. More...

bool	setField (const char fieldName, const char value)
	Set the value of a field. More...

virtual	~ConsoleObject ()

Static Public Member Functions
static const char *	lookupClassName (const U32 in_classTag)
	Get the classname from a class tag. More...

static void	initPersistFields ()

static void	consoleInit ()

Protected Member Functions
	ConsoleObject ()

	ConsoleObject (const ConsoleObject &)

Object Creation
static ConsoleObject *	create (const char *in_pClassName)

static ConsoleObject *	create (const U32 groupId, const U32 typeId, const U32 in_classId)

Fields
static void	addGroup (const char in_pGroupname, const char in_pGroupDocs=NULL)

static void	endGroup (const char *in_pGroupname)

static void	addField (const char in_pFieldname, const U32 in_fieldType, const dsize_t in_fieldOffset, const U32 in_elementCount=1, EnumTable in_table=NULL, const char *in_pFieldDocs=NULL)

static void	addField (const char in_pFieldname, const U32 in_fieldType, const dsize_t in_fieldOffset, AbstractClassRep::WriteDataNotify in_writeDataFn, const U32 in_elementCount=1, EnumTable in_table=NULL, const char *in_pFieldDocs=NULL)

static void	addField (const char in_pFieldname, const U32 in_fieldType, const dsize_t in_fieldOffset, const char in_pFieldDocs)

static void	addField (const char in_pFieldname, const U32 in_fieldType, const dsize_t in_fieldOffset, AbstractClassRep::WriteDataNotify in_writeDataFn, const char in_pFieldDocs)

static void	addFieldV (const char in_pFieldname, const U32 in_fieldType, const dsize_t in_fieldOffset, ConsoleTypeValidator v, const char *in_pFieldDocs=NULL)

static void	addProtectedField (const char in_pFieldname, const U32 in_fieldType, const dsize_t in_fieldOffset, AbstractClassRep::SetDataNotify in_setDataFn, AbstractClassRep::GetDataNotify in_getDataFn=&defaultProtectedGetFn, const U32 in_elementCount=1, EnumTable in_table=NULL, const char *in_pFieldDocs=NULL)

static void	addProtectedField (const char in_pFieldname, const U32 in_fieldType, const dsize_t in_fieldOffset, AbstractClassRep::SetDataNotify in_setDataFn, AbstractClassRep::GetDataNotify in_getDataFn=&defaultProtectedGetFn, AbstractClassRep::WriteDataNotify in_writeDataFn=&defaultProtectedWriteFn, const U32 in_elementCount=1, EnumTable in_table=NULL, const char *in_pFieldDocs=NULL)

static void	addProtectedField (const char in_pFieldname, const U32 in_fieldType, const dsize_t in_fieldOffset, AbstractClassRep::SetDataNotify in_setDataFn, AbstractClassRep::GetDataNotify in_getDataFn=&defaultProtectedGetFn, const char in_pFieldDocs=NULL)

static void	addProtectedField (const char in_pFieldname, const U32 in_fieldType, const dsize_t in_fieldOffset, AbstractClassRep::SetDataNotify in_setDataFn, AbstractClassRep::GetDataNotify in_getDataFn=&defaultProtectedGetFn, AbstractClassRep::WriteDataNotify in_writeDataFn=&defaultProtectedWriteFn, const char in_pFieldDocs=NULL)

static void	addDepricatedField (const char *fieldName)

static bool	removeField (const char *in_pFieldname)

Field List
const AbstractClassRep::FieldList &	getFieldList () const
	Get a list of all the fields. This information cannot be modified. More...

AbstractClassRep::FieldList &	getModifiableFieldList ()

bool &	getDynamicGroupExpand ()

ConsoleObject Implementation
These functions are implemented in every subclass of ConsoleObject by an IMPLEMENT_CONOBJECT or IMPLEMENT_CO_* macro.
S32	getClassId (U32 netClassGroup) const

const char *	getClassName () const

static AbstractClassRep *	getStaticClassRep ()
	Get the abstract class information for this class. More...

static AbstractClassRep *	getParentStaticClassRep ()
	Get the abstract class information for this class's superclass. More...

Detailed Description

Interface class to the console.

The Basics

Any object which you want to work with the console system should derive from this, and access functionality through the static interface.

This class is always used with the DECLARE_CONOBJECT and IMPLEMENT_* macros.

// A very basic example object. It will do nothing!
class TorqueObject : public ConsoleObject {
     // Must provide a Parent typedef so the console system knows what we inherit from.
     typedef ConsoleObject Parent;
     // This does a lot of menial declaration for you.
     DECLARE_CONOBJECT(TorqueObject);
     // This is for us to register our fields in.
     static void initPersistFields();
     // A sample field.
     S8 mSample;
}

// And the accordant implementation...
IMPLEMENT_CONOBJECT(TorqueObject);
void TorqueObject::initPersistFields()
{
  // If you want to inherit any fields from the parent (you do), do this:
  Parent::initPersistFields();
  // Pass the field, the type, the offset,                  and a usage string.
  addField("sample", TypeS8, Offset(mSample, TorqueObject), "A test field.");
}

That's all you need to do to get a class registered with the console system. At this point, you can instantiate it via script, tie methods to it using ConsoleMethod, register fields, and so forth. You can also register any global variables related to the class by creating a consoleInit() method.

You will need to use different IMPLEMENT_ macros in different cases; for instance, if you are making a NetObject (for ghosting), a DataBlock, or a NetEvent.

See Also: AbstractClassRep for gory implementation details.

Constructor & Destructor Documentation

ConsoleObject ( )

inlineprotected

Deprecated:: This is disallowed.

ConsoleObject ( const ConsoleObject & )

protected

Deprecated:: This is disallowed.

~ConsoleObject ( )

virtual

Member Function Documentation

void addDepricatedField ( const char * fieldName )

staticprotected

Add a deprecated field.

A deprecated field will always be undefined, even if you assign a value to it. This is useful when you need to make sure that a field is not being used anymore.

void addField	(	const char *	in_pFieldname,
		const U32	in_fieldType,
		const dsize_t	in_fieldOffset,
		const U32	in_elementCount = `1`,
		EnumTable *	in_table = `NULL`,
		const char *	in_pFieldDocs = `NULL`
	)

staticprotected

Register a complex field.

Parameters

in_pFieldname	Name of the field.
in_fieldType	Type of the field.

See Also: ConsoleDynamicTypes

Parameters

in_fieldOffset	Offset to the field from the start of the class; calculated using the Offset() macro.
in_elementCount	Number of elements in this field. Arrays of elements are assumed to be contiguous in memory.
in_table	An EnumTable, if this is an enumerated field.
in_pFieldDocs	Usage string for this field.

See Also: console_autodoc

void addField	(	const char *	in_pFieldname,
		const U32	in_fieldType,
		const dsize_t	in_fieldOffset,
		AbstractClassRep::WriteDataNotify	in_writeDataFn,
		const U32	in_elementCount = `1`,
		EnumTable *	in_table = `NULL`,
		const char *	in_pFieldDocs = `NULL`
	)

staticprotected

Register a complex field with a write notify.

Parameters

in_pFieldname	Name of the field.
in_fieldType	Type of the field.

See Also: ConsoleDynamicTypes

Parameters

in_fieldOffset	Offset to the field from the start of the class; calculated using the Offset() macro.
in_writeDataFn	This method will return whether the field should be written or not.
in_elementCount	Number of elements in this field. Arrays of elements are assumed to be contiguous in memory.
in_table	An EnumTable, if this is an enumerated field.
in_pFieldDocs	Usage string for this field.

See Also: console_autodoc

void addField	(	const char *	in_pFieldname,
		const U32	in_fieldType,
		const dsize_t	in_fieldOffset,
		const char *	in_pFieldDocs
	)

staticprotected

Register a simple field.

Parameters

in_pFieldname	Name of the field.
in_fieldType	Type of the field.

See Also: ConsoleDynamicTypes

Parameters

in_fieldOffset	Offset to the field from the start of the class; calculated using the Offset() macro.
in_pFieldDocs	Usage string for this field.

See Also: console_autodoc

void addField	(	const char *	in_pFieldname,
		const U32	in_fieldType,
		const dsize_t	in_fieldOffset,
		AbstractClassRep::WriteDataNotify	in_writeDataFn,
		const char *	in_pFieldDocs
	)

staticprotected

Register a simple field with a write notify.

Parameters

in_pFieldname	Name of the field.
in_fieldType	Type of the field.

See Also: ConsoleDynamicTypes

Parameters

in_fieldOffset	Offset to the field from the start of the class; calculated using the Offset() macro.
in_writeDataFn	This method will return whether the field should be written or not.
in_pFieldDocs	Usage string for this field.

See Also: console_autodoc

void addFieldV	(	const char *	in_pFieldname,
		const U32	in_fieldType,
		const dsize_t	in_fieldOffset,
		ConsoleTypeValidator *	v,
		const char *	in_pFieldDocs = `NULL`
	)

staticprotected

Register a validated field.

A validated field is just like a normal field except that you can't have it be an array, and that you give it a pointer to a ConsoleTypeValidator subclass, which is then used to validate any value placed in it. Invalid values are ignored and an error is printed to the console.

See Also: addField; typeValidators.h

void addGroup	(	const char *	in_pGroupname,
		const char *	in_pGroupDocs = `NULL`
	)

staticprotected

Mark the beginning of a group of fields.

This is used in the consoleDoc system.

See Also: console_autodoc

void addProtectedField	(	const char *	in_pFieldname,
		const U32	in_fieldType,
		const dsize_t	in_fieldOffset,
		AbstractClassRep::SetDataNotify	in_setDataFn,
		AbstractClassRep::GetDataNotify	in_getDataFn = `&defaultProtectedGetFn`,
		const U32	in_elementCount = `1`,
		EnumTable *	in_table = `NULL`,
		const char *	in_pFieldDocs = `NULL`
	)

staticprotected

Register a complex protected field.

Parameters

in_pFieldname	Name of the field.
in_fieldType	Type of the field.

See Also: ConsoleDynamicTypes

Parameters

in_fieldOffset	Offset to the field from the start of the class; calculated using the Offset() macro.
in_setDataFn	When this field gets set, it will call the callback provided.

See Also: console_protected

Parameters

in_getDataFn	When this field is accessed for it's data, it will return the value of this function
in_elementCount	Number of elements in this field. Arrays of elements are assumed to be contiguous in memory.
in_table	An EnumTable, if this is an enumerated field.
in_pFieldDocs	Usage string for this field.

See Also: console_autodoc

void addProtectedField	(	const char *	in_pFieldname,
		const U32	in_fieldType,
		const dsize_t	in_fieldOffset,
		AbstractClassRep::SetDataNotify	in_setDataFn,
		AbstractClassRep::GetDataNotify	in_getDataFn = `&defaultProtectedGetFn`,
		AbstractClassRep::WriteDataNotify	in_writeDataFn = `&defaultProtectedWriteFn`,
		const U32	in_elementCount = `1`,
		EnumTable *	in_table = `NULL`,
		const char *	in_pFieldDocs = `NULL`
	)

staticprotected

Register a complex protected field.

Parameters

in_pFieldname	Name of the field.
in_fieldType	Type of the field.

See Also: ConsoleDynamicTypes

Parameters

in_fieldOffset	Offset to the field from the start of the class; calculated using the Offset() macro.
in_setDataFn	When this field gets set, it will call the callback provided.

See Also: console_protected

Parameters

in_getDataFn	When this field is accessed for it's data, it will return the value of this function
in_writeDataFn	This method will return whether the field should be written or not.
in_elementCount	Number of elements in this field. Arrays of elements are assumed to be contiguous in memory.
in_table	An EnumTable, if this is an enumerated field.
in_pFieldDocs	Usage string for this field.

See Also: console_autodoc

void addProtectedField	(	const char *	in_pFieldname,
		const U32	in_fieldType,
		const dsize_t	in_fieldOffset,
		AbstractClassRep::SetDataNotify	in_setDataFn,
		AbstractClassRep::GetDataNotify	in_getDataFn = `&defaultProtectedGetFn`,
		const char *	in_pFieldDocs = `NULL`
	)

staticprotected

Register a simple protected field.

Parameters

in_pFieldname	Name of the field.
in_fieldType	Type of the field.

See Also: ConsoleDynamicTypes

Parameters

in_fieldOffset	Offset to the field from the start of the class; calculated using the Offset() macro.
in_setDataFn	When this field gets set, it will call the callback provided.

See Also: console_protected

Parameters

in_getDataFn	When this field is accessed for it's data, it will return the value of this function
in_pFieldDocs	Usage string for this field.

See Also: console_autodoc

void addProtectedField	(	const char *	in_pFieldname,
		const U32	in_fieldType,
		const dsize_t	in_fieldOffset,
		AbstractClassRep::SetDataNotify	in_setDataFn,
		AbstractClassRep::GetDataNotify	in_getDataFn = `&defaultProtectedGetFn`,
		AbstractClassRep::WriteDataNotify	in_writeDataFn = `&defaultProtectedWriteFn`,
		const char *	in_pFieldDocs = `NULL`
	)

staticprotected

Register a simple protected field.

Parameters

in_pFieldname	Name of the field.
in_fieldType	Type of the field.

See Also: ConsoleDynamicTypes

Parameters

in_fieldOffset	Offset to the field from the start of the class; calculated using the Offset() macro.
in_setDataFn	When this field gets set, it will call the callback provided.

See Also: console_protected

Parameters

in_getDataFn	When this field is accessed for it's data, it will return the value of this function
in_writeDataFn	This method will return whether the field should be written or not.
in_pFieldDocs	Usage string for this field.

See Also: console_autodoc

void consoleInit ( )

static

Register global constant variables and do other one-time initialization tasks in a subclass of ConsoleObject.

Deprecated:: You should use ConsoleMethod and ConsoleFunction, not this, to register methods or commands.

See Also: console

ConsoleObject * create ( const char * in_pClassName )

inlinestatic

ConsoleObject * create	(	const U32	groupId,
		const U32	typeId,
		const U32	in_classId
	)

inlinestatic

void endGroup ( const char * in_pGroupname )

staticprotected

Mark the end of a group of fields.

This is used in the consoleDoc system.

See Also: console_autodoc

const AbstractClassRep::Field * findField ( StringTableEntry fieldName ) const

inline

Get a reference to a field by name.

S32 getClassId ( U32 netClassGroup ) const

inline

Get our network-layer class id.

Parameters

netClassGroup The net class for which we want our ID.

See Also

const char * getClassName ( ) const

inline

Get our compiler and platform independent class name.

Note: This name can be used to instantiate another instance using create()

AbstractClassRep * getClassRep ( ) const

virtual

Gets the ClassRep.

bool & getDynamicGroupExpand ( )

inline

Get a handle to a boolean telling us if we expanded the dynamic group.

See Also: GuiInspector::Inspect()

const AbstractClassRep::FieldList & getFieldList ( ) const

inline

Get a list of all the fields. This information cannot be modified.

AbstractClassRep::FieldList & getModifiableFieldList ( )

inline

Get a list of all the fields, set up so we can modify them.

Note: This is a bad trick to pull if you aren't very careful, since you can blast field data!

static AbstractClassRep* getParentStaticClassRep ( )

inlinestatic

Get the abstract class information for this class's superclass.

static AbstractClassRep* getStaticClassRep ( )

inlinestatic

Get the abstract class information for this class.

void initPersistFields ( )

static

Register dynamic fields in a subclass of ConsoleObject.

See Also: addField(), addFieldV(), addDepricatedField(), addGroup(), endGroup()

static const char* lookupClassName ( const U32 in_classTag )

static

Get the classname from a class tag.

bool removeField ( const char * in_pFieldname )

staticprotected

Remove a field.

Sometimes, you just have to remove a field!

Returns: True on success.

bool setField	(	const char *	fieldName,
		const char *	value
	)

inline

Set the value of a field.

The documentation for this class was generated from the following files:

console/consoleObject.h
console/consoleObject.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Object Creation

Fields

Field List

ConsoleObject Implementation

Detailed Description

The Basics

Constructor & Destructor Documentation

Member Function Documentation
