#include <guiCanvas.h>

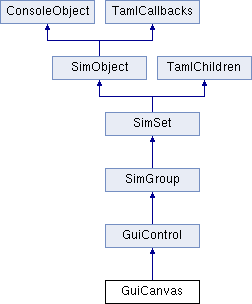

Inheritance diagram for GuiCanvas:

Classes
struct	AccKeyMap
	Accelerator key map. More...

Public Member Functions
	DECLARE_CONOBJECT (GuiCanvas)

	GuiCanvas ()

virtual	~GuiCanvas ()

void	setBackgroundColor (const ColorF &backgroundColor)
	Background color. More...

const ColorF &	getBackgroundColor (void) const

void	setUseBackgroundColor (const bool useBackgroundColor)

bool	getUseBackgroundColor (void) const

virtual void	setRenderFront (bool front)

Point2I	getCursorExtent ()

Rendering methods
virtual void	renderFrame (bool preRenderOnly, bool bufferSwap=true)

virtual void	paint ()
	Repaints the entire canvas by calling resetUpdateRegions() and then renderFrame() More...

virtual void	addUpdateRegion (Point2I pos, Point2I ext)

virtual void	resetUpdateRegions ()

void	maintainSizing ()
	Resizes the content control to match the canvas size. More...

virtual void	buildUpdateUnion (RectI *updateUnion)

virtual void	swapBuffers ()

Canvas Content Management
virtual void	setContentControl (GuiControl *gui)

virtual GuiControl *	getContentControl ()
	Returns the content control. More...

virtual void	pushDialogControl (GuiControl *gui, S32 layer=0)

virtual void	popDialogControl (S32 layer=0)

virtual void	popDialogControl (GuiControl *gui)

Cursor commands
A cursor can be on, but not be shown. If a cursor is not on, than it does not process input.
virtual void	setCursor (GuiCursor *cursor)

virtual bool	isCursorON ()
	Returns true if the cursor is on. More...

void	setDoubleClickTime (S32 time)
	Sets the time allowed between clicks to be considered a double click. More...

void	setDoubleClickWidth (S32 width)
	Sets the amount of movement allowed that won't cancel a double click. More...

void	setDoubleClickHeight (S32 height)

virtual void	setCursorON (bool onOff)

virtual void	setCursorPos (const Point2I &pt)

virtual Point2I	getCursorPos ()
	Returns the point, in screenspace, at which the cursor is located. More...

virtual void	showCursor (bool state)

virtual bool	isCursorShown ()
	Returns true if the cursor is being rendered. More...

Input Processing
virtual bool	processInputEvent (const InputEvent *event)

virtual void	processMouseMoveEvent (const MouseMoveEvent *event)

virtual void	processScreenTouchEvent (const ScreenTouchEvent *event)

Mouse Methods
virtual void	mouseLock (GuiControl *lockingControl)

virtual void	mouseUnlock (GuiControl *lockingControl)

virtual GuiControl *	getMouseControl ()
	Returns the control which the mouse is over. More...

virtual GuiControl *	getMouseLockedControl ()
	Returns the control which the mouse is locked to if any. More...

virtual bool	mouseButtonDown (void)
	Returns true if the left mouse button is down. More...

virtual bool	mouseRightButtonDown (void)
	Returns true if the right mouse button is down. More...

virtual void	checkLockMouseMove (const GuiEvent &event)

Mouse input methods
These events process the events before passing them down to the controls they effect. This allows for things such as the input locking and such. Each of these methods corosponds to the action in it's method name and processes the GuiEvent passd as a parameter
virtual void	rootMouseUp (const GuiEvent &event)

virtual void	rootMouseDown (const GuiEvent &event)

virtual void	rootMouseMove (const GuiEvent &event)

virtual void	rootMouseDragged (const GuiEvent &event)

virtual void	rootScreenTouchUp (const GuiEvent &event)

virtual void	rootScreenTouchDown (const GuiEvent &event)

virtual void	rootScreenTouchMove (const GuiEvent &event)

virtual void	rootRightMouseDown (const GuiEvent &event)

virtual void	rootRightMouseUp (const GuiEvent &event)

virtual void	rootRightMouseDragged (const GuiEvent &event)

virtual void	rootMiddleMouseDown (const GuiEvent &event)

virtual void	rootMiddleMouseUp (const GuiEvent &event)

virtual void	rootMiddleMouseDragged (const GuiEvent &event)

virtual void	rootMouseWheelUp (const GuiEvent &event)

virtual void	rootMouseWheelDown (const GuiEvent &event)

Keyboard input methods
First responders A first responder is a the GuiControl which responds first to input events before passing them off for further processing.
virtual bool	tabNext (void)
	Moves the first responder to the next tabable controle. More...

virtual bool	tabPrev (void)
	Moves the first responder to the previous tabable control. More...

virtual void	addAcceleratorKey (GuiControl *ctrl, U32 index, U32 keyCode, U32 modifier)

virtual void	setFirstResponder (GuiControl *firstResponder)

Public Member Functions inherited from GuiControl
virtual void	getScrollLineSizes (U32 rowHeight, U32 columnWidth)

virtual void	getCursor (GuiCursor *&cursor, bool &showCursor, const GuiEvent &lastGuiEvent)

void	awaken ()
	Called when this control and its children have been wired up. More...

void	sleep ()
	Called when this control is no more. More...

void	preRender ()
	Prerender this control and all its children. More...

virtual bool	onInputEvent (const InputEvent &event)
	General input handler. More...

virtual bool	ControlIsChild (GuiControl *child)

void	setControlProfile (GuiControlProfile *prof)

virtual void	onAction ()
	Occurs when this control performs its "action". More...

void	renderJustifiedText (Point2I offset, Point2I extent, const char *text)

void	inspectPostApply ()

void	inspectPreApply ()

void	setSizing (S32 horz, S32 vert)

void	write (Stream &stream, U32 tabStop, U32 flags)
	Overrides Parent Serialization to allow specific controls to not be saved (Dynamic Controls, etc) More...

bool	getCanSave ()
	Returns boolean specifying if a control can be serialized. More...

void	setCanSave (bool bCanSave)
	Set serialization flag. More...

bool	getCanSaveParent ()
	Returns boolean as to whether any parent of this control has the 'no serialization' flag set. More...

const Point2I &	getPosition ()
	Returns position of the control. More...

const Point2I &	getExtent ()
	Returns extents of the control. More...

const RectI &	getBounds ()
	Returns the bounds of the control. More...

const Point2I &	getMinExtent ()
	Returns minimum size the control can be. More...

const S32	getLeft ()
	Returns the X position of the control. More...

const S32	getTop ()
	Returns the Y position of the control. More...

const S32	getWidth ()
	Returns the width of the control. More...

const S32	getHeight ()
	Returns the height of the control. More...

virtual void	setVisible (bool value)

bool	isVisible ()
	Returns true if the object is visible. More...

void	setActive (bool value)

bool	isActive ()
	Returns true if this control is active. More...

bool	isAwake ()
	Returns true if this control is awake. More...

void	addObject (SimObject *obj)

void	removeObject (SimObject *obj)

GuiControl *	getParent ()
	Returns the control which owns this one. More...

GuiCanvas *	getRoot ()

Point2I	localToGlobalCoord (const Point2I &src)

Point2I	globalToLocalCoord (const Point2I &src)

virtual void	resize (const Point2I &newPosition, const Point2I &newExtent)

virtual void	setPosition (const Point2I &newPosition)

virtual void	setExtent (const Point2I &newExtent)

virtual void	setBounds (const RectI &newBounds)

virtual void	setLeft (S32 newLeft)

virtual void	setTop (S32 newTop)

virtual void	setWidth (S32 newWidth)

virtual void	setHeight (S32 newHeight)

virtual void	childResized (GuiControl *child)

virtual void	parentResized (const Point2I &oldParentExtent, const Point2I &newParentExtent)

virtual void	onRender (Point2I offset, const RectI &updateRect)

virtual bool	renderTooltip (Point2I cursorPos, const char *tipText=NULL)

void	renderChildControls (Point2I offset, const RectI &updateRect)

void	setUpdateRegion (Point2I pos, Point2I ext)

virtual void	setUpdate ()
	Sets the update area of the control to encompass the whole control. More...

virtual bool	onWake ()
	Called when this object is asked to wake up returns true if it's actually awake at the end. More...

virtual void	onSleep ()
	Called when this object is asked to sleep. More...

virtual void	onPreRender ()
	Do special pre-render proecessing. More...

virtual void	onRemove ()
	Called when this object is removed. More...

virtual void	onChildRemoved (GuiControl *child)
	Called when one of this objects children is removed. More...

bool	onAdd ()
	Called when this object is added to the scene. More...

virtual void	onChildAdded (GuiControl *child)
	Called when this object has a new child. More...

virtual bool	pointInControl (const Point2I &parentCoordPoint)

bool	cursorInControl ()
	Returns true if the global cursor is inside this control. More...

virtual GuiControl *	findHitControl (const Point2I &pt, S32 initialLayer=-1)

void	mouseLock (GuiControl *lockingControl)

void	mouseLock ()
	Turn on mouse locking with last used lock control. More...

void	mouseUnlock ()
	Unlock the mouse. More...

bool	isMouseLocked ()
	Returns true if the mouse is locked. More...

virtual void	onMouseUp (const GuiEvent &event)

virtual void	onMouseDown (const GuiEvent &event)

virtual void	onMouseMove (const GuiEvent &event)

virtual void	onMouseDragged (const GuiEvent &event)

virtual void	onMouseEnter (const GuiEvent &event)

virtual void	onMouseLeave (const GuiEvent &event)

virtual bool	onMouseWheelUp (const GuiEvent &event)

virtual bool	onMouseWheelDown (const GuiEvent &event)

virtual void	onRightMouseDown (const GuiEvent &event)

virtual void	onRightMouseUp (const GuiEvent &event)

virtual void	onRightMouseDragged (const GuiEvent &event)

virtual void	onMiddleMouseDown (const GuiEvent &event)

virtual void	onMiddleMouseUp (const GuiEvent &event)

virtual void	onMiddleMouseDragged (const GuiEvent &event)

virtual bool	onMouseDownEditor (const GuiEvent &event, Point2I offset)

virtual bool	onMouseUpEditor (const GuiEvent &event, Point2I offset)

virtual bool	onRightMouseDownEditor (const GuiEvent &event, Point2I offset)

virtual bool	onMouseDraggedEditor (const GuiEvent &event, Point2I offset)

virtual GuiControl *	findFirstTabable ()
	Find the first tab-accessable child of this control. More...

virtual GuiControl *	findLastTabable (bool firstCall=true)

virtual GuiControl *	findPrevTabable (GuiControl *curResponder, bool firstCall=true)

virtual GuiControl *	findNextTabable (GuiControl *curResponder, bool firstCall=true)

virtual void	makeFirstResponder (bool value)

bool	isFirstResponder ()
	Returns true if this control is a first responder. More...

virtual void	setFirstResponder ()
	Sets this object to be a first responder. More...

void	clearFirstResponder ()
	Clears the first responder for this chain. More...

GuiControl *	getFirstResponder ()
	Returns the first responder for this chain. More...

virtual void	onLoseFirstResponder ()
	Occurs when the first responder for this chain is lost. More...

void	addAcceleratorKey ()
	Adds the accelerator key for this object to the canvas. More...

virtual void	buildAcceleratorMap ()

virtual void	acceleratorKeyPress (U32 index)

virtual void	acceleratorKeyRelease (U32 index)

virtual bool	onKeyDown (const GuiEvent &event)

virtual bool	onKeyUp (const GuiEvent &event)

virtual bool	onKeyRepeat (const GuiEvent &event)

void	messageSiblings (S32 message)
	Send a message to all siblings. More...

virtual void	onMessage (GuiControl *sender, S32 msg)

virtual void	onDialogPush ()
	Called if this object is a dialog, when it is added to the visible layers. More...

virtual void	onDialogPop ()
	Called if this object is a dialog, when it is removed from the visible layers. More...

void	setConsoleVariable (const char *variable)

void	setConsoleCommand (const char *newCmd)

const char *	getConsoleCommand ()
	Returns the name of the function bound to this GuiControl. More...

LangTable *	getGUILangTable (void)

const UTF8 *	getGUIString (S32 id)

virtual const char *	getScriptValue ()
	Returns the value of the variable bound to this object. More...

virtual void	setScriptValue (const char *value)
	Sets the value of the variable bound to this object. More...

	DECLARE_CONOBJECT (GuiControl)

	GuiControl ()

virtual	~GuiControl ()

Public Member Functions inherited from SimGroup
	~SimGroup ()

void	addObject (SimObject *, SimObjectId)

void	addObject (SimObject , const char name)

virtual SimObject *	findObject (const char *name)
	Find an object in the group. More...

bool	processArguments (S32 argc, const char **argv)
	Process constructor options. (ie, new SimObject(1,2,3)) More...

	DECLARE_CONOBJECT (SimGroup)

Public Member Functions inherited from SimSet
	SimSet ()

	~SimSet ()

virtual void	onDeleteNotify (SimObject *object)

virtual U32	getTamlChildCount (void) const
	Called when Taml attempts to compile a list of children. More...

virtual SimObject *	getTamlChild (const U32 childIndex) const
	Called when Taml attempts to compile a list of children. More...

virtual void	addTamlChild (SimObject *pSimObject)
	Called when Taml attempts to populate an objects children during a read. More...

void	callOnChildren (const char method, S32 argc, const char argv[], bool executeOnChildGroups=true)

SimObject *	findObjectByInternalName (const char *internalName, bool searchChildren=false)

virtual bool	writeObject (Stream *stream)

virtual bool	readObject (Stream *stream)

void	lock ()

void	unlock ()

	DECLARE_CONOBJECT (SimSet)

void	_setVectorAssoc (const char *file, const U32 line)

virtual void	pushObject (SimObject *)

virtual void	popObject ()
	Remove an object from the end of the list. More...

void	bringObjectToFront (SimObject *obj)

void	pushObjectToBack (SimObject *obj)

SimObject *	front ()

SimObject *	first ()

SimObject *	last ()

bool	empty ()

S32	size () const

iterator	begin ()

iterator	end ()

value	operator[] (S32 index)

iterator	find (iterator first, iterator last, SimObject *obj)

iterator	find (SimObject *obj)

template<typename T >
bool	containsType (void)

virtual bool	reOrder (SimObject obj, SimObject target=0)

SimObject *	at (S32 index) const

void	deleteObjects (void)

void	clear ()

Public Member Functions inherited from SimObject
StringTableEntry	getClassNamespace () const

StringTableEntry	getSuperClassNamespace () const

void	setClassNamespace (const char *classNamespace)

void	setSuperClassNamespace (const char *superClassNamespace)

void	pushScriptCallbackGuard (void)

void	popScriptCallbackGuard (void)

S32	getScriptCallbackGuard (void)

Namespace *	getNamespace ()
	Return the object's namespace. More...

const char *	tabComplete (const char *prevText, S32 baseLen, bool)

virtual void	dump ()

virtual void	dumpClassHierarchy ()

SimObject *	clone (const bool copyDynamicFields)

virtual void	copyTo (SimObject *object)

template<typename T >
bool	isType (void)

virtual bool	handlesConsoleMethod (const char fname, S32 routingId)

	DECLARE_CONOBJECT (SimObject)

Notify *	removeNotify (void *ptr, Notify::Type)
	Remove a notification from the list. More...

void	deleteNotify (SimObject *obj)
	Notify an object when we are deleted. More...

void	clearNotify (SimObject *obj)
	Notify an object when we are cleared. More...

void	clearAllNotifications ()
	Remove all notifications for this object. More...

void	processDeleteNotifies ()
	Send out deletion notifications. More...

void	registerReference (SimObject **obj)

void	unregisterReference (SimObject **obj)

const char *	getDataField (StringTableEntry slotName, const char *array)

void	setDataField (StringTableEntry slotName, const char array, const char value)

const char *	getPrefixedDataField (StringTableEntry fieldName, const char *array)

void	setPrefixedDataField (StringTableEntry fieldName, const char array, const char value)

const char *	getPrefixedDynamicDataField (StringTableEntry fieldName, const char *array, const S32 fieldType=-1)

void	setPrefixedDynamicDataField (StringTableEntry fieldName, const char array, const char value, const S32 fieldType=-1)

StringTableEntry	getDataFieldPrefix (StringTableEntry fieldName)

U32	getDataFieldType (StringTableEntry slotName, const char *array)

SimFieldDictionary *	getFieldDictionary ()

void	clearDynamicFields (void)
	Clear all dynamic fields. More...

void	setCanSaveDynamicFields (bool bCanSave)
	Set whether fields created at runtime should be saved. Default is true. More...

bool	getCanSaveDynamicFields (void) const
	Get whether fields created at runtime should be saved. Default is true. More...

void	setInternalName (const char *newname)

StringTableEntry	getInternalName ()
	Get the internal of of this control. More...

virtual bool	save (const char *pcFilePath, bool bOnlySelected=false)
	Save object as a TorqueScript File. More...

virtual bool	isMethod (const char *methodName)
	Check if a method exists in the objects current namespace. More...

SimObjectId	getId (void) const

StringTableEntry	getIdString (void) const

U32	getType () const

const StringTableEntry	getName (void) const

void	setId (SimObjectId id)

void	assignName (const char *name)

SimGroup *	getGroup () const

bool	isChildOfGroup (SimGroup *pGroup)

bool	isProperlyAdded () const

bool	isDeleted () const

bool	isRemoved () const

bool	isLocked ()

void	setLocked (bool b)

bool	isHidden ()

void	setHidden (bool b)

void	setProgenitorFile (const char *pFile)

StringTableEntry	getProgenitorFile (void) const

void	setPeriodicTimerID (const S32 timerID)

S32	getPeriodicTimerID (void) const

bool	isPeriodicTimerActive (void) const

bool	isSelected () const

bool	isExpanded () const

void	setSelected (bool sel)

void	setExpanded (bool exp)

void	setModDynamicFields (bool dyn)

void	setModStaticFields (bool sta)

	SimObject (const U8 namespaceLinkMask=LinkSuperClassName\|LinkClassName)

virtual	~SimObject ()

virtual void	onGroupAdd ()
	Called when the object is added to a SimGroup. More...

virtual void	onGroupRemove ()
	Called when the object is removed from a SimGroup. More...

virtual void	onNameChange (const char *name)
	Called when the object's name is changed. More...

virtual void	onStaticModified (const char slotName, const char newValue=NULL)

virtual void	onEditorEnable ()
	Called when the editor is activated. More...

virtual void	onEditorDisable ()
	Called when the editor is deactivated. More...

bool	registerObject ()

bool	registerObject (U32 id)

bool	registerObject (const char *name)

bool	registerObject (const char *name, U32 id)

void	unregisterObject ()

void	deleteObject ()

bool	addToSet (SimObjectId)

bool	addToSet (const char *)

bool	removeFromSet (SimObjectId)

bool	removeFromSet (const char *)

virtual bool	writeField (StringTableEntry fieldname, const char *value)

virtual void	writeFields (Stream &stream, U32 tabStop)

virtual void	buildFilterList ()

void	addFieldFilter (const char *fieldName)

void	removeFieldFilter (const char *fieldName)

void	clearFieldFilters ()

bool	isFiltered (const char *fieldName)

void	assignFieldsFrom (SimObject *obj)

void	assignDynamicFieldsFrom (SimObject *obj)

Public Member Functions inherited from ConsoleObject
const AbstractClassRep::Field *	findField (StringTableEntry fieldName) const
	Get a reference to a field by name. More...

virtual AbstractClassRep *	getClassRep () const
	Gets the ClassRep. More...

bool	setField (const char fieldName, const char value)
	Set the value of a field. More...

virtual	~ConsoleObject ()

const AbstractClassRep::FieldList &	getFieldList () const
	Get a list of all the fields. This information cannot be modified. More...

AbstractClassRep::FieldList &	getModifiableFieldList ()

bool &	getDynamicGroupExpand ()

S32	getClassId (U32 netClassGroup) const

const char *	getClassName () const

Static Public Member Functions
static void	initPersistFields ()

Static Public Member Functions inherited from GuiControl
static void	initPersistFields ()

Protected Types
typedef GuiControl	Parent

typedef SimObject	Grandparent

Protected Attributes
ColorF	mBackgroundColor
	Background color. More...

bool	mUseBackgroundColor

Rendering
RectI	mOldUpdateRects [2]

RectI	mCurUpdateRect

F32	rLastFrameTime

Cursor Properties
F32	mPixelsPerMickey

bool	cursorON

bool	mShowCursor

bool	mRenderFront

Point2F	cursorPt

Point2I	lastCursorPt

GuiCursor *	defaultCursor

GuiCursor *	lastCursor

bool	lastCursorON

Keyboard Input
GuiControl *	keyboardControl
	All keyboard events will go to this ctrl first. More...

U32	nextKeyTime

Vector< AccKeyMap >	mAcceleratorMap

U32	hoverControlStart

GuiControl *	hoverControl

Point2I	hoverPosition

bool	hoverPositionSet

U32	hoverLeftControlTime

Protected Attributes inherited from GuiControl
S32	mHorizSizing
	Set from horizSizingOptions. More...

S32	mVertSizing
	Set from vertSizingOptions. More...

StringTableEntry	mConsoleVariable

StringTableEntry	mConsoleCommand

StringTableEntry	mAltConsoleCommand

StringTableEntry	mAcceleratorKey

StringTableEntry	mTooltip

Mouse Input
SimObjectPtr< GuiControl >	mMouseCapturedControl
	All mouse events will go to this ctrl only. More...

SimObjectPtr< GuiControl >	mMouseControl
	the control the mouse was last seen in unless some other one captured it More...

bool	mMouseControlClicked
	whether the current ctrl has been clicked - used by helpctrl More...

U32	mPrevMouseTime
	this determines how long the mouse has been in the same control More...

U32	mNextMouseTime
	used for onMouseRepeat() More...

U32	mInitialMouseDelay
	also used for onMouseRepeat() More...

bool	mMouseButtonDown
	Flag to determine if the button is depressed. More...

bool	mMouseRightButtonDown
	bool to determine if the right button is depressed More...

bool	mMouseMiddleButtonDown
	Middle button flag. More...

GuiEvent	mLastEvent

U8	mLastMouseClickCount

S32	mLastMouseDownTime

bool	mLeftMouseLast

bool	mMiddleMouseLast

bool	mRightMouseLast

Point2F	mMouseDownPoint

S32	mDoubleClickWidth

S32	mDoubleClickHeight

S32	mDoubleClickTime

virtual void	findMouseControl (const GuiEvent &event)

virtual void	refreshMouseControl ()

Additional Inherited Members
Public Types inherited from GuiControl
enum	horizSizingOptions { horizResizeRight = 0, horizResizeWidth, horizResizeLeft, horizResizeCenter, horizResizeRelative }

enum	vertSizingOptions { vertResizeBottom = 0, vertResizeHeight, vertResizeTop, vertResizeCenter, vertResizeRelative }

Public Attributes inherited from GuiControl
GuiControlProfile *	mProfile

GuiControlProfile *	mTooltipProfile

S32	mTipHoverTime

S32	mTooltipWidth

bool	mVisible

bool	mActive

bool	mAwake

bool	mSetFirstResponder

bool	mCanSave

bool	mIsContainer
	if true, then the GuiEditor can drag other controls into this one. More...

S32	mLayer

RectI	mBounds

Point2I	mMinExtent

StringTableEntry	mLangTableName

LangTable *	mLangTable

SimObjectPtr< GuiControl >	mFirstResponder

Static Public Attributes inherited from GuiControl
static GuiEditCtrl *	smEditorHandle = NULL

static S32	smCursorChanged = -1
	Has this control modified the cursor? -1 or type. More...

static bool	smDesignTime = false

static GuiControl *	smPrevResponder = NULL

static GuiControl *	smCurResponder = NULL

Protected Member Functions inherited from GuiControl
const char *	execConsoleCallback ()
	Executes mConsoleCommand, and returns the result. More...

const char *	execAltConsoleCallback ()
	Executes mAltConsoleCommand, and returns the result. More...

void	setVariable (const char *value)

void	setIntVariable (S32 value)

void	setFloatVariable (F32 value)

const char *	getVariable ()
	Returns value of control's bound variable as a string. More...

S32	getIntVariable ()
	Returns value of control's bound variable as a integer. More...

F32	getFloatVariable ()
	Returns value of control's bound variable as a float. More...

Static Protected Member Functions inherited from SimObject
static bool	setClass (void obj, const char data)

static bool	setSuperClass (void obj, const char data)

static bool	writeCanSaveDynamicFields (void *obj, StringTableEntry pFieldName)

static bool	writeInternalName (void *obj, StringTableEntry pFieldName)

static bool	setParentGroup (void obj, const char data)

static bool	writeParentGroup (void *obj, StringTableEntry pFieldName)

static bool	writeSuperclass (void *obj, StringTableEntry pFieldName)

static bool	writeClass (void *obj, StringTableEntry pFieldName)

static SimObject::Notify *	allocNotify ()
	Get a free Notify structure. More...

static void	freeNotify (SimObject::Notify *)
	Mark a Notify structure as free. More...

Static Protected Attributes inherited from SimObject
static SimObject::Notify *	mNotifyFreeList = NULL

Detailed Description

A canvas on which rendering occurs.

What a GUICanvas Can Contain...

Content Control

A content control is the top level GuiControl for a screen. This GuiControl will be the parent control for all other GuiControls on that particular screen.

Dialogs

A dialog is essentially another screen, only it gets overlaid on top of the current content control, and all input goes to the dialog. This is most akin to the "Open File" dialog box found in most operating systems. When you choose to open a file, and the "Open File" dialog pops up, you can no longer send input to the application, and must complete or cancel the open file request. Torque keeps track of layers of dialogs. The dialog with the highest layer is on top and will get all the input, unless the dialog is modeless, which is a profile option.

See Also: GuiControlProfile

Dirty Rectangles

The GuiCanvas is based on dirty regions.

Every frame the canvas paints only the areas of the canvas that are 'dirty' or need updating. In most cases, this only is the area under the mouse cursor. This is why if you look in guiCanvas.cc the call to glClear is commented out. If you want a really good idea of what exactly dirty regions are and how they work, un-comment that glClear line in the renderFrame method of guiCanvas.cc

What you will see is a black screen, except in the dirty regions, where the screen will be painted normally. If you are making an animated GuiControl you need to add your control to the dirty areas of the canvas.

Member Typedef Documentation

typedef SimObject Grandparent

protected

typedef GuiControl Parent

protected

Constructor & Destructor Documentation

GuiCanvas ( )

Background color.

~GuiCanvas ( )

virtual

Member Function Documentation

void addAcceleratorKey	(	GuiControl *	ctrl,
		U32	index,
		U32	keyCode,
		U32	modifier
	)

virtual

Setups a keyboard accelerator which maps to a GuiControl.

Parameters

ctrl	GuiControl to map to.
index
keyCode	Key code.
modifier	Shift, ctrl, etc.

void addUpdateRegion	(	Point2I	pos,
		Point2I	ext
	)

virtual

Adds a dirty area to the canvas so it will be updated on the next frame

Parameters

pos	Screen-coordinates of the upper-left hand corner of the dirty area
ext	Width/height of the dirty area

void buildUpdateUnion ( RectI * updateUnion )

virtual

This builds a rectangle which encompasses all of the dirty regions to be repainted

Parameters

updateUnion (out) Rectangle which surrounds all dirty areas

void checkLockMouseMove ( const GuiEvent & event )

virtual

DECLARE_CONOBJECT ( GuiCanvas )

void findMouseControl ( const GuiEvent & event )

protectedvirtual

const ColorF& getBackgroundColor ( void ) const

inline

GuiControl * getContentControl ( )

virtual

Returns the content control.

Point2I getCursorExtent ( )

inline

used by the tooltip resource

virtual Point2I getCursorPos ( )

inlinevirtual

Returns the point, in screenspace, at which the cursor is located.

virtual GuiControl* getMouseControl ( )

inlinevirtual

Returns the control which the mouse is over.

virtual GuiControl* getMouseLockedControl ( )

inlinevirtual

Returns the control which the mouse is locked to if any.

bool getUseBackgroundColor ( void ) const

inline

void initPersistFields ( void )

static

virtual bool isCursorON ( )

inlinevirtual

Returns true if the cursor is on.

virtual bool isCursorShown ( )

inlinevirtual

Returns true if the cursor is being rendered.

void maintainSizing ( )

Resizes the content control to match the canvas size.

virtual bool mouseButtonDown ( void )

inlinevirtual

Returns true if the left mouse button is down.

void mouseLock ( GuiControl * lockingControl )

virtual

When a control gets the mouse lock this means that that control gets ALL mouse input and no other control recieves any input.

Parameters

lockingControl Control to lock mouse to

virtual bool mouseRightButtonDown ( void )

inlinevirtual

Returns true if the right mouse button is down.

void mouseUnlock ( GuiControl * lockingControl )

virtual

Unlocks the mouse from a control

Parameters

lockingControl Control to unlock from

void paint ( )

virtual

Repaints the entire canvas by calling resetUpdateRegions() and then renderFrame()

void popDialogControl ( S32 layer = 0 )

virtual

Removes a specific layer of dialogs

Parameters

layer Layer to pop off from

void popDialogControl ( GuiControl * gui )

virtual

Removes a specific dialog control

Parameters

gui	Dialog to remove from the dialog stack

bool processInputEvent ( const InputEvent * event )

virtual

Processes an input event

See Also: InputEvent

Parameters

event Input event to process

void processMouseMoveEvent ( const MouseMoveEvent * event )

virtual

Processes a mouse movement event

See Also: MouseMoveEvent

Parameters

event Mouse move event to process

void processScreenTouchEvent ( const ScreenTouchEvent * event )

virtual

void pushDialogControl	(	GuiControl *	gui,
		S32	layer = `0`
	)

virtual

Adds a dialog control onto the stack of dialogs

Parameters

gui	Dialog to add
layer	Layer to put dialog on

void refreshMouseControl ( )

protectedvirtual

void renderFrame	(	bool	preRenderOnly,
		bool	bufferSwap = `true`
	)

virtual

Repaints the dirty regions of the canvas

Parameters

preRenderOnly	If set to true, only the onPreRender methods of all the GuiControls will be called
bufferSwap	If set to true, it will swap buffers at the end. This is to support canvas-subclassing.

void resetUpdateRegions ( )

virtual

Resets the update regions so that the next call to renderFrame will repaint the whole canvas

void rootMiddleMouseDown ( const GuiEvent & event )

virtual

void rootMiddleMouseDragged ( const GuiEvent & event )

virtual

void rootMiddleMouseUp ( const GuiEvent & event )

virtual

void rootMouseDown ( const GuiEvent & event )

virtual

void rootMouseDragged ( const GuiEvent & event )

virtual

void rootMouseMove ( const GuiEvent & event )

virtual

void rootMouseUp ( const GuiEvent & event )

virtual

void rootMouseWheelDown ( const GuiEvent & event )

virtual

void rootMouseWheelUp ( const GuiEvent & event )

virtual

void rootRightMouseDown ( const GuiEvent & event )

virtual

void rootRightMouseDragged ( const GuiEvent & event )

virtual

void rootRightMouseUp ( const GuiEvent & event )

virtual

void rootScreenTouchDown ( const GuiEvent & event )

virtual

void rootScreenTouchMove ( const GuiEvent & event )

virtual

void rootScreenTouchUp ( const GuiEvent & event )

virtual

void setBackgroundColor ( const ColorF & backgroundColor )

inline

Background color.

void setContentControl ( GuiControl * gui )

virtual

This sets the content control to something different

Parameters

gui	New content control

void setCursor ( GuiCursor * cursor )

virtual

Sets the cursor for the canvas.

Parameters

cursor New cursor to use.

void setCursorON ( bool onOff )

virtual

Turns the cursor on or off.

Parameters

onOff True if the cursor should be on.

void setCursorPos ( const Point2I & pt )

virtual

Sets the position of the cursor

Parameters

pt	Point, in screenspace for the cursor

void setDoubleClickHeight ( S32 height )

inline

void setDoubleClickTime ( S32 time )

inline

Sets the time allowed between clicks to be considered a double click.

void setDoubleClickWidth ( S32 width )

inline

Sets the amount of movement allowed that won't cancel a double click.

void setFirstResponder ( GuiControl * firstResponder )

virtual

Sets the first responder.

Parameters

firstResponder Control to designate as first responder

Reimplemented from GuiControl.

virtual void setRenderFront ( bool front )

inlinevirtual

This turns on/off front-buffer rendering

Parameters

front True if all rendering should be done to the front buffer

void setUseBackgroundColor ( const bool useBackgroundColor )

inline

virtual void showCursor ( bool state )

inlinevirtual

Enable/disable rendering of the cursor.

Parameters

state True if we should render cursor

void swapBuffers ( )

virtual

This will swap the buffers at the end of renderFrame. It was added for canvas sub-classes in case they wanted to do some custom code before the buffer flip occured.

bool tabNext ( void )

virtual

Moves the first responder to the next tabable controle.

bool tabPrev ( void )

virtual

Moves the first responder to the previous tabable control.

Member Data Documentation

bool cursorON

protected

Point2F cursorPt

protected

GuiCursor* defaultCursor

protected

GuiControl* hoverControl

protected

U32 hoverControlStart

protected

U32 hoverLeftControlTime

protected

Point2I hoverPosition

protected

bool hoverPositionSet

protected

GuiControl* keyboardControl

protected

All keyboard events will go to this ctrl first.

GuiCursor* lastCursor

protected

bool lastCursorON

protected

Point2I lastCursorPt

protected

Vector<AccKeyMap> mAcceleratorMap

protected

ColorF mBackgroundColor

protected

Background color.

RectI mCurUpdateRect

protected

S32 mDoubleClickHeight

protected

S32 mDoubleClickTime

protected

S32 mDoubleClickWidth

protected

U32 mInitialMouseDelay

protected

also used for onMouseRepeat()

GuiEvent mLastEvent

protected

U8 mLastMouseClickCount

protected

S32 mLastMouseDownTime

protected

bool mLeftMouseLast

protected

bool mMiddleMouseLast

protected

bool mMouseButtonDown

protected

Flag to determine if the button is depressed.

SimObjectPtr<GuiControl> mMouseCapturedControl

protected

All mouse events will go to this ctrl only.

SimObjectPtr<GuiControl> mMouseControl

protected

the control the mouse was last seen in unless some other one captured it

bool mMouseControlClicked

protected

whether the current ctrl has been clicked - used by helpctrl

Point2F mMouseDownPoint

protected

bool mMouseMiddleButtonDown

protected

Middle button flag.

bool mMouseRightButtonDown

protected

bool to determine if the right button is depressed

U32 mNextMouseTime

protected

used for onMouseRepeat()

RectI mOldUpdateRects[2]

protected

F32 mPixelsPerMickey

protected

 This is the scale factor which relates

mouse movement in pixels (one unit of mouse movement is a mickey) to units in the GUI.

U32 mPrevMouseTime

protected

this determines how long the mouse has been in the same control

bool mRenderFront

protected

bool mRightMouseLast

protected

bool mShowCursor

protected

bool mUseBackgroundColor

protected

U32 nextKeyTime

protected

F32 rLastFrameTime

protected

The documentation for this class was generated from the following files:

gui/guiCanvas.h
gui/guiCanvas.cc

Classes

Public Member Functions

Static Public Member Functions

Protected Types

Protected Attributes

Mouse Input

Additional Inherited Members

Detailed Description

What a GUICanvas Can Contain...

Content Control

Dialogs

Dirty Rectangles

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
