#include <Scene.h>

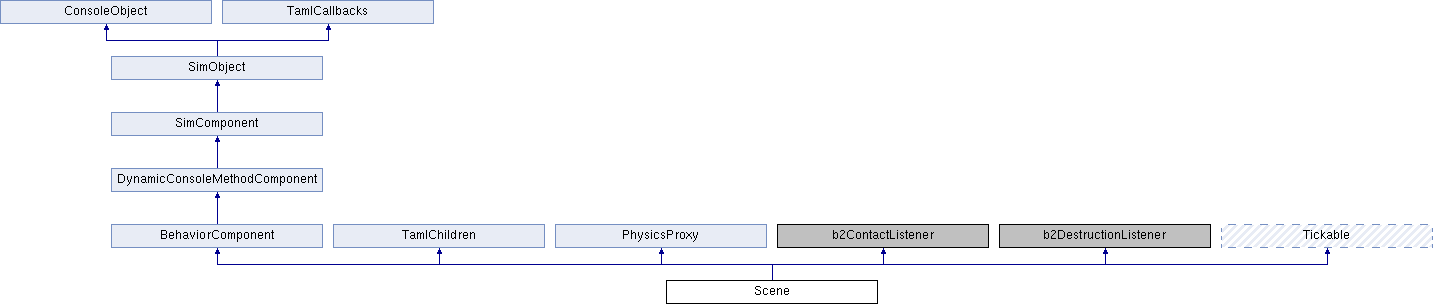

Inheritance diagram for Scene:

Public Types
enum	DebugOption { SCENE_DEBUG_INVALID, SCENE_DEBUG_METRICS = BIT(0), SCENE_DEBUG_FPS_METRICS = BIT(1), SCENE_DEBUG_CONTROLLERS = BIT(2), SCENE_DEBUG_JOINTS = BIT(3), SCENE_DEBUG_WIREFRAME_RENDER = BIT(4), SCENE_DEBUG_AABB = BIT(16), SCENE_DEBUG_OOBB = BIT(17), SCENE_DEBUG_SLEEP = BIT(18), SCENE_DEBUG_COLLISION_SHAPES = BIT(19), SCENE_DEBUG_POSITION_AND_COM = BIT(20), SCENE_DEBUG_SORT_POINTS = BIT(21) }
	Scene Debug Options. More...

enum	PickMode { PICK_INVALID, PICK_ANY, PICK_AABB, PICK_OOBB, PICK_COLLISION }
	Pick mode. More...

typedef HashMap< S32, b2Joint * >	typeJointHash

typedef HashMap< U32, S32 >	typeReverseJointHash

typedef Vector< tDeleteRequest >	typeDeleteVector

typedef Vector< TickContact >	typeContactVector

typedef HashMap< b2Contact *, TickContact >	typeContactHash

typedef Vector< AssetPtr < AssetBase > * >	typeAssetPtrVector

Public Types inherited from BehaviorComponent
typedef Vector < BehaviorPortConnection >	typePortConnectionVector

typedef HashMap < StringTableEntry, typePortConnectionVector * >	typeOutputNameConnectionHash

typedef HashMap< SimObjectId, typeOutputNameConnectionHash * >	typeInstanceConnectionHash

Public Types inherited from PhysicsProxy
enum	ePhysicsProxyType { PHYSIC_PROXY_INVALID, PHYSIC_PROXY_CUSTOM, PHYSIC_PROXY_SCENEOBJECT, PHYSIC_PROXY_GROUNDBODY }

Public Member Functions
	Scene ()

virtual	~Scene ()

virtual bool	onAdd ()
	Engine. More...

virtual void	onRemove ()
	Called when the object is removed from the sim. More...

virtual void	onDeleteNotify (SimObject *object)

virtual void	PreSolve (b2Contact pContact, const b2Manifold pOldManifold)
	Contact processing. More...

virtual void	PostSolve (b2Contact pContact, const b2ContactImpulse pImpulse)

virtual void	BeginContact (b2Contact *pContact)

virtual void	EndContact (b2Contact *pContact)

const typeContactHash &	getBeginContacts (void) const

const typeContactVector &	getEndContacts (void) const

virtual void	processTick ()
	Integration. More...

virtual void	interpolateTick (F32 delta)

virtual void	advanceTime (F32 timeDelta)

void	sceneRender (const SceneRenderState *pSceneRenderState)
	Render output. More...

b2World *	getWorld (void) const
	World. More...

WorldQuery *	getWorldQuery (const bool clearQuery=false)

b2BlockAllocator *	getBlockAllocator (void)

b2Body *	getGroundBody (void) const

virtual ePhysicsProxyType	getPhysicsProxyType (void) const

void	setGravity (const b2Vec2 &gravity)

b2Vec2	getGravity (void)

void	setVelocityIterations (const S32 iterations)

S32	getVelocityIterations (void) const

void	setPositionIterations (const S32 iterations)

S32	getPositionIterations (void) const

void	clearScene (bool deleteObjects=true)
	Scene occupancy. More...

void	addToScene (SceneObject *pSceneObject)

void	removeFromScene (SceneObject *pSceneObject)

typeSceneObjectVectorConstRef	getSceneObjects (void) const

U32	getSceneObjectCount (void) const

SceneObject *	getSceneObject (const U32 objectIndex) const

U32	getSceneObjects (typeSceneObjectVector &objects) const

U32	getSceneObjects (typeSceneObjectVector &objects, const U32 sceneLayer) const

void	mergeScene (const Scene *pScene)

SimSet *	getControllers (void)

S32	getAssetPreloadCount (void) const

const AssetPtr< AssetBase > *	getAssetPreload (const S32 index) const

void	addAssetPreload (const char *pAssetId)

void	removeAssetPreload (const char *pAssetId)

void	clearAssetPreloads (void)

F32	getSceneTime (void) const
	Scene time. More...

void	setScenePause (bool status)

bool	getScenePause (void) const

U32	getJointCount (void) const
	Joint access. More...

b2JointType	getJointType (const S32 jointId)

b2Joint *	findJoint (const S32 jointId)

S32	findJointId (b2Joint *pJoint)

S32	createJoint (b2JointDef *pJointDef)

bool	deleteJoint (const U32 jointId)

bool	hasJoints (SceneObject *pSceneObject)

S32	createDistanceJoint (const SceneObject pSceneObjectA, const SceneObject pSceneObjectB, const b2Vec2 &localAnchorA=b2Vec2_zero, const b2Vec2 &localAnchorB=b2Vec2_zero, const F32 length=-1.0f, const F32 frequency=0.0f, const F32 dampingRatio=0.0f, const bool collideConnected=false)
	Distance joint. More...

void	setDistanceJointLength (const U32 jointId, const F32 length)

F32	getDistanceJointLength (const U32 jointId)

void	setDistanceJointFrequency (const U32 jointId, const F32 frequency)

F32	getDistanceJointFrequency (const U32 jointId)

void	setDistanceJointDampingRatio (const U32 jointId, const F32 dampingRatio)

F32	getDistanceJointDampingRatio (const U32 jointId)

S32	createRopeJoint (const SceneObject pSceneObjectA, const SceneObject pSceneObjectB, const b2Vec2 &localAnchorA=b2Vec2_zero, const b2Vec2 &localAnchorB=b2Vec2_zero, const F32 maxLength=-1.0f, const bool collideConnected=false)
	Rope joint. More...

void	setRopeJointMaxLength (const U32 jointId, const F32 maxLength)

F32	getRopeJointMaxLength (const U32 jointId)

S32	createRevoluteJoint (const SceneObject pSceneObjectA, const SceneObject pSceneObjectB, const b2Vec2 &localAnchorA=b2Vec2_zero, const b2Vec2 &localAnchorB=b2Vec2_zero, const bool collideConnected=false)
	Revolute joint. More...

void	setRevoluteJointLimit (const U32 jointId, const bool enableLimit, const F32 lowerAngle, const F32 upperAngle)

bool	getRevoluteJointLimit (const U32 jointId, bool &enableLimit, F32 &lowerAngle, F32 &upperAngle)

void	setRevoluteJointMotor (const U32 jointId, const bool enableMotor, const F32 motorSpeed=b2_pi, const F32 maxMotorTorque=0.0f)

bool	getRevoluteJointMotor (const U32 jointId, bool &enableMotor, F32 &motorSpeed, F32 &maxMotorTorque)

F32	getRevoluteJointAngle (const U32 jointId)

F32	getRevoluteJointSpeed (const U32 jointId)

S32	createWeldJoint (const SceneObject pSceneObjectA, const SceneObject pSceneObjectB, const b2Vec2 &localAnchorA=b2Vec2_zero, const b2Vec2 &localAnchorB=b2Vec2_zero, const F32 frequency=0.0f, const F32 dampingRatio=0.0f, const bool collideConnected=false)
	Weld joint. More...

void	setWeldJointFrequency (const U32 jointId, const F32 frequency)

F32	getWeldJointFrequency (const U32 jointId)

void	setWeldJointDampingRatio (const U32 jointId, const F32 dampingRatio)

F32	getWeldJointDampingRatio (const U32 jointId)

S32	createWheelJoint (const SceneObject pSceneObjectA, const SceneObject pSceneObjectB, const b2Vec2 &localAnchorA, const b2Vec2 &localAnchorB, const b2Vec2 &worldAxis, const bool collideConnected=false)
	Wheel joint. More...

void	setWheelJointMotor (const U32 jointId, const bool enableMotor, const F32 motorSpeed=b2_pi, const F32 maxMotorTorque=0.0f)

bool	getWheelJointMotor (const U32 jointId, bool &enableMotor, F32 &motorSpeed, F32 &maxMotorTorque)

void	setWheelJointFrequency (const U32 jointId, const F32 frequency)

F32	getWheelJointFrequency (const U32 jointId)

void	setWheelJointDampingRatio (const U32 jointId, const F32 dampingRatio)

F32	getWheelJointDampingRatio (const U32 jointId)

S32	createFrictionJoint (const SceneObject pSceneObjectA, const SceneObject pSceneObjectB, const b2Vec2 &localAnchorA=b2Vec2_zero, const b2Vec2 &localAnchorB=b2Vec2_zero, const F32 maxForce=0.0f, const F32 maxTorque=0.0f, const bool collideConnected=false)
	Friction joint. More...

void	setFrictionJointMaxForce (const U32 jointId, const F32 maxForce)

F32	getFrictionJointMaxForce (const U32 jointId)

void	setFrictionJointMaxTorque (const U32 jointId, const F32 maxTorque)

F32	getFrictionJointMaxTorque (const U32 jointId)

S32	createPrismaticJoint (const SceneObject pSceneObjectA, const SceneObject pSceneObjectB, const b2Vec2 &localAnchorA, const b2Vec2 &localAnchorB, const b2Vec2 &worldAxis, const bool collideConnected=false)
	Prismatic joint. More...

void	setPrismaticJointLimit (const U32 jointId, const bool enableLimit, const F32 lowerTranslation, const F32 upperTranslation)

bool	getPrismaticJointLimit (const U32 jointId, bool &enableLimit, F32 &lowerTranslation, F32 &upperTranslation)

void	setPrismaticJointMotor (const U32 jointId, const bool enableMotor, const F32 motorSpeed=b2_pi, const F32 maxMotorForce=0.0f)

bool	getPrismaticJointMotor (const U32 jointId, bool &enableMotor, F32 &motorSpeed, F32 &maxMotorTorque)

S32	createPulleyJoint (const SceneObject pSceneObjectA, const SceneObject pSceneObjectB, const b2Vec2 &localAnchorA, const b2Vec2 &localAnchorB, const b2Vec2 &worldGroundAnchorA, const b2Vec2 &worldGroundAnchorB, const F32 ratio, const F32 lengthA=-1.0f, const F32 lengthB=-1.0f, const bool collideConnected=false)
	Pulley joint. More...

S32	createTargetJoint (const SceneObject *pSceneObject, const b2Vec2 &worldTarget, const F32 maxForce, const bool useCenterOfMass=false, const F32 frequency=5.0f, const F32 dampingRatio=0.7f, const bool collideConnected=false)
	Target (a.k.a Mouse) joint. More...

void	setTargetJointTarget (const U32 jointId, const b2Vec2 &worldTarget)

b2Vec2	getTargetJointTarget (const U32 jointId)

void	setTargetJointMaxForce (const U32 jointId, const F32 maxForce)

F32	getTargetJointMaxForce (const U32 jointId)

void	setTargetJointFrequency (const U32 jointId, const F32 frequency)

F32	getTargetJointFrequency (const U32 jointId)

void	setTargetJointDampingRatio (const U32 jointId, const F32 dampingRatio)

F32	getTargetJointDampingRatio (const U32 jointId)

S32	createMotorJoint (const SceneObject pSceneObjectA, const SceneObject pSceneObjectB, const b2Vec2 linearOffset=b2Vec2_zero, const F32 angularOffset=0.0f, const F32 maxForce=1.0f, const F32 maxTorque=1.0f, const F32 correctionFactor=0.3f, const bool collideConnected=false)
	Motor Joint. More...

void	setMotorJointLinearOffset (const U32 jointId, const b2Vec2 &linearOffset)

b2Vec2	getMotorJointLinearOffset (const U32 jointId)

void	setMotorJointAngularOffset (const U32 jointId, const F32 angularOffset)

F32	getMotorJointAngularOffset (const U32 jointId)

void	setMotorJointMaxForce (const U32 jointId, const F32 maxForce)

F32	getMotorJointMaxForce (const U32 jointId)

void	setMotorJointMaxTorque (const U32 jointId, const F32 maxTorque)

F32	getMotorJointMaxTorque (const U32 jointId)

void	setDebugOn (const U32 debugMask)
	Debug and metrics. More...

void	setDebugOff (const U32 debugMask)

U32	getDebugMask (void) const

DebugStats &	getDebugStats (void)

void	resetDebugStats (void)

void	setDebugSceneObject (SceneObject *pSceneObject)

SceneObject *	getDebugSceneObject (void) const

void	setLayerSortMode (const U32 layer, const SceneRenderQueue::RenderSort sortMode)
	Layer sorting. More...

SceneRenderQueue::RenderSort	getLayerSortMode (const U32 layer)

void	attachSceneWindow (SceneWindow *pSceneWindow2D)
	Window attachments. More...

void	detachSceneWindow (SceneWindow *pSceneWindow2D)

void	detachAllSceneWindows (void)

bool	isSceneWindowAttached (SceneWindow *pSceneWindow2D)

SimSet &	getAttachedSceneWindows (void)

void	addDeleteRequest (SceneObject *pSceneObject)
	Delete requests. More...

void	processDeleteRequests (const bool forceImmediate)

virtual void	SayGoodbye (b2Joint *pJoint)
	Destruction listeners. More...

virtual void	SayGoodbye (b2Fixture *pFixture)

virtual SceneObject *	create (const char *pType)

void	setBatchingEnabled (const bool enabled)
	Miscellaneous. More...

bool	getBatchingEnabled (void) const

bool	getIsEditorScene (void) const

void	setIsEditorScene (bool status)

U32	getSceneIndex (void) const

void	setUpdateCallback (const bool callback)

bool	getUpdateCallback (void) const

void	setRenderCallback (const bool callback)

bool	getRenderCallback (void) const

virtual U32	getTamlChildCount (void) const
	Taml children. More...

virtual SimObject *	getTamlChild (const U32 childIndex) const
	Called when Taml attempts to compile a list of children. More...

virtual void	addTamlChild (SimObject *pSimObject)
	Called when Taml attempts to populate an objects children during a read. More...

	DECLARE_CONOBJECT (Scene)
	Declare Console Object. More...

Public Member Functions inherited from BehaviorComponent
	BehaviorComponent ()

virtual	~BehaviorComponent ()

virtual void	copyTo (SimObject *object)

BehaviorInstance *	getBehaviorByInstanceId (const U32 behaviorId)
	Behavior interface. More...

virtual bool	addBehavior (BehaviorInstance *bi)

virtual bool	removeBehavior (BehaviorInstance *bi, bool deleteBehavior=true)

virtual void	clearBehaviors ()

virtual U32	getBehaviorCount () const

virtual const SimSet &	getBehaviors () const

virtual BehaviorInstance *	getBehavior (StringTableEntry behaviorTemplateName)

virtual BehaviorInstance *	getBehavior (const U32 index)

virtual bool	reOrder (BehaviorInstance *obj, U32 desiredIndex)

bool	connect (BehaviorInstance pOutputBehavior, BehaviorInstance pInputBehavior, StringTableEntry pOutputName, StringTableEntry pInputName)
	Behavior connectivity. More...

bool	disconnect (BehaviorInstance pOutputBehavior, BehaviorInstance pInputBehavior, StringTableEntry pOutputName, StringTableEntry pInputName)

bool	raise (BehaviorInstance *pOutputBehavior, StringTableEntry pOutputName)

U32	getBehaviorConnectionCount (BehaviorInstance *pOutputBehavior, StringTableEntry pOutputName)

const BehaviorPortConnection *	getBehaviorConnection (BehaviorInstance *pOutputBehavior, StringTableEntry pOutputName, const U32 connectionIndex)

const typePortConnectionVector *	getBehaviorConnections (BehaviorInstance *pOutputBehavior, StringTableEntry pOutputName)

virtual bool	handlesConsoleMethod (const char fname, S32 routingId)
	DynamicConsoleMethodComponent Overrides. More...

virtual const char *	callOnBehaviors (U32 argc, const char *argv[])

virtual void	write (Stream &stream, U32 tabStop, U32 flags=0)
	SimComponent overrides. More...

	DECLARE_CONOBJECT (BehaviorComponent)

Public Member Functions inherited from DynamicConsoleMethodComponent
const char *	callMethod (S32 argc, const char *methodName,...)
	Call Method format string. More...

virtual const char *	callMethodArgList (U32 argc, const char *argv[], bool callThis=true)
	Call Method. More...

	DECLARE_CONOBJECT (DynamicConsoleMethodComponent)

Public Member Functions inherited from SimComponent
	DECLARE_CONOBJECT (SimComponent)

	SimComponent ()

virtual	~SimComponent ()

virtual bool	processArguments (S32 argc, const char **argv)
	Process constructor options. (ie, new SimObject(1,2,3)) More...

bool	hasComponents () const
	Will return true if this object contains components. More...

const SimComponent *	getOwner () const
	The component which owns this object. More...

virtual StringTableEntry	getComponentName ()

virtual bool	addComponent (SimComponent *component)
	Add Component to this one. More...

virtual bool	removeComponent (SimComponent *component)
	Remove Component from this one. More...

virtual bool	clearComponents ()
	Clear Child components of this one. More...

virtual bool	onComponentAdd (SimComponent *target)

virtual void	onComponentRemove (SimComponent *target)

U32	getComponentCount ()

SimComponent *	getComponent (const U32 index)

virtual void	setEnabled (const bool enabled)

bool	isEnabled () const

virtual bool	writeField (StringTableEntry fieldname, const char *value)

virtual void	onUpdate (void)

virtual void	onAddToScene (void)

virtual void	onRemoveFromScene (void)

bool	callMethodOnComponents (U32 argc, const char argv[], const char *result)

Public Member Functions inherited from SimObject
StringTableEntry	getClassNamespace () const

StringTableEntry	getSuperClassNamespace () const

void	setClassNamespace (const char *classNamespace)

void	setSuperClassNamespace (const char *superClassNamespace)

void	pushScriptCallbackGuard (void)

void	popScriptCallbackGuard (void)

S32	getScriptCallbackGuard (void)

virtual SimObject *	findObject (const char *name)

Namespace *	getNamespace ()
	Return the object's namespace. More...

const char *	tabComplete (const char *prevText, S32 baseLen, bool)

virtual void	dump ()

virtual void	dumpClassHierarchy ()

SimObject *	clone (const bool copyDynamicFields)

template<typename T >
bool	isType (void)

	DECLARE_CONOBJECT (SimObject)

Notify *	removeNotify (void *ptr, Notify::Type)
	Remove a notification from the list. More...

void	deleteNotify (SimObject *obj)
	Notify an object when we are deleted. More...

void	clearNotify (SimObject *obj)
	Notify an object when we are cleared. More...

void	clearAllNotifications ()
	Remove all notifications for this object. More...

void	processDeleteNotifies ()
	Send out deletion notifications. More...

void	registerReference (SimObject **obj)

void	unregisterReference (SimObject **obj)

const char *	getDataField (StringTableEntry slotName, const char *array)

void	setDataField (StringTableEntry slotName, const char array, const char value)

const char *	getPrefixedDataField (StringTableEntry fieldName, const char *array)

void	setPrefixedDataField (StringTableEntry fieldName, const char array, const char value)

const char *	getPrefixedDynamicDataField (StringTableEntry fieldName, const char *array, const S32 fieldType=-1)

void	setPrefixedDynamicDataField (StringTableEntry fieldName, const char array, const char value, const S32 fieldType=-1)

StringTableEntry	getDataFieldPrefix (StringTableEntry fieldName)

U32	getDataFieldType (StringTableEntry slotName, const char *array)

SimFieldDictionary *	getFieldDictionary ()

void	clearDynamicFields (void)
	Clear all dynamic fields. More...

void	setCanSaveDynamicFields (bool bCanSave)
	Set whether fields created at runtime should be saved. Default is true. More...

bool	getCanSaveDynamicFields (void) const
	Get whether fields created at runtime should be saved. Default is true. More...

void	setInternalName (const char *newname)

StringTableEntry	getInternalName ()
	Get the internal of of this control. More...

virtual bool	save (const char *pcFilePath, bool bOnlySelected=false)
	Save object as a TorqueScript File. More...

virtual bool	isMethod (const char *methodName)
	Check if a method exists in the objects current namespace. More...

SimObjectId	getId (void) const

StringTableEntry	getIdString (void) const

U32	getType () const

const StringTableEntry	getName (void) const

void	setId (SimObjectId id)

void	assignName (const char *name)

SimGroup *	getGroup () const

bool	isChildOfGroup (SimGroup *pGroup)

bool	isProperlyAdded () const

bool	isDeleted () const

bool	isRemoved () const

bool	isLocked ()

void	setLocked (bool b)

bool	isHidden ()

void	setHidden (bool b)

void	setProgenitorFile (const char *pFile)

StringTableEntry	getProgenitorFile (void) const

void	setPeriodicTimerID (const S32 timerID)

S32	getPeriodicTimerID (void) const

bool	isPeriodicTimerActive (void) const

bool	isSelected () const

bool	isExpanded () const

void	setSelected (bool sel)

void	setExpanded (bool exp)

void	setModDynamicFields (bool dyn)

void	setModStaticFields (bool sta)

	SimObject (const U8 namespaceLinkMask=LinkSuperClassName\|LinkClassName)

virtual	~SimObject ()

virtual void	onGroupAdd ()
	Called when the object is added to a SimGroup. More...

virtual void	onGroupRemove ()
	Called when the object is removed from a SimGroup. More...

virtual void	onNameChange (const char *name)
	Called when the object's name is changed. More...

virtual void	onStaticModified (const char slotName, const char newValue=NULL)

virtual void	inspectPreApply ()

virtual void	inspectPostApply ()

virtual void	onEditorEnable ()
	Called when the editor is activated. More...

virtual void	onEditorDisable ()
	Called when the editor is deactivated. More...

bool	registerObject ()

bool	registerObject (U32 id)

bool	registerObject (const char *name)

bool	registerObject (const char *name, U32 id)

void	unregisterObject ()

void	deleteObject ()

bool	addToSet (SimObjectId)

bool	addToSet (const char *)

bool	removeFromSet (SimObjectId)

bool	removeFromSet (const char *)

virtual void	writeFields (Stream &stream, U32 tabStop)

virtual bool	writeObject (Stream *stream)

virtual bool	readObject (Stream *stream)

virtual void	buildFilterList ()

void	addFieldFilter (const char *fieldName)

void	removeFieldFilter (const char *fieldName)

void	clearFieldFilters ()

bool	isFiltered (const char *fieldName)

void	assignFieldsFrom (SimObject *obj)

void	assignDynamicFieldsFrom (SimObject *obj)

Public Member Functions inherited from ConsoleObject
const AbstractClassRep::Field *	findField (StringTableEntry fieldName) const
	Get a reference to a field by name. More...

virtual AbstractClassRep *	getClassRep () const
	Gets the ClassRep. More...

bool	setField (const char fieldName, const char value)
	Set the value of a field. More...

virtual	~ConsoleObject ()

const AbstractClassRep::FieldList &	getFieldList () const
	Get a list of all the fields. This information cannot be modified. More...

AbstractClassRep::FieldList &	getModifiableFieldList ()

bool &	getDynamicGroupExpand ()

S32	getClassId (U32 netClassGroup) const

const char *	getClassName () const

Public Member Functions inherited from PhysicsProxy
	PhysicsProxy ()

virtual	~PhysicsProxy ()

Public Member Functions inherited from Tickable
	Tickable ()

virtual	~Tickable ()

virtual bool	isProcessingTicks () const

virtual void	setProcessTicks (bool tick=true)

Static Public Member Functions
static void	initPersistFields ()

static U32	getGlobalSceneCount (void)

static SceneRenderRequest *	createDefaultRenderRequest (SceneRenderQueue pSceneRenderQueue, SceneObject pSceneObject)

static b2JointType	getJointTypeEnum (const char *label)

static const char *	getJointTypeDescription (b2JointType jointType)

static PickMode	getPickModeEnum (const char *label)

static const char *	getPickModeDescription (PickMode pickMode)

static DebugOption	getDebugOptionEnum (const char *label)

static const char *	getDebugOptionDescription (DebugOption debugOption)

Static Public Member Functions inherited from Tickable
static bool	advanceTime (U32 timeDelta)

Public Attributes
DebugDraw	mDebugDraw
	Debug drawing. More...

Public Attributes inherited from BehaviorComponent
typeInstanceConnectionHash	mBehaviorConnections

Static Public Attributes
static SimObjectPtr< Scene >	LoadingScene = NULL

Static Public Attributes inherited from Tickable
static const U32	smTickShift = 4
	Shift value to control how often Ticks occur. More...

static const U32	smTickMs = ( 1 << smTickShift )
	Number of milliseconds per tick, 32 in this case. More...

static const F32	smTickSec = ( F32( Tickable::smTickMs ) / 1000.f )
	Fraction of a second per tick. More...

static const U32	smTickMask = ( smTickMs - 1 )

Protected Member Functions
virtual void	onTamlPreRead (void)
	Taml callbacks. More...

virtual void	onTamlPostRead (const TamlCustomNodes &customNodes)

virtual void	onTamlCustomWrite (TamlCustomNodes &customNodes)
	Taml callbacks. More...

virtual void	onTamlCustomRead (const TamlCustomNodes &customNodes)
	Called during the reading of the object to allow custom properties to be read. More...

Protected Member Functions inherited from BehaviorComponent
virtual const char *	_callMethod (U32 argc, const char *argv[], bool callThis=true)

Static Protected Member Functions
static bool	setGravity (void obj, const char data)
	Physics. More...

static const char *	getGravity (void obj, const char data)

static bool	writeGravity (void *obj, StringTableEntry pFieldName)

static bool	writeVelocityIterations (void *obj, StringTableEntry pFieldName)

static bool	writePositionIterations (void *obj, StringTableEntry pFieldName)

static bool	writeLayerSortMode (void *obj, StringTableEntry pFieldName)

static bool	writeUpdateCallback (void *obj, StringTableEntry pFieldName)

static bool	writeRenderCallback (void *obj, StringTableEntry pFieldName)

Additional Inherited Members
Protected Types inherited from SimComponent
typedef VectorPtr < SimComponent * >::iterator	SimComponentIterator
	Returns a const reference to private mComponentList. More...

Protected Attributes inherited from SimComponent
bool	mEnabled

Static Protected Attributes inherited from SimObject
static SimObject::Notify *	mNotifyFreeList = NULL

Detailed Description

Member Typedef Documentation

typedef Vector<AssetPtr<AssetBase>*> typeAssetPtrVector

typedef HashMap<b2Contact*, TickContact> typeContactHash

typedef Vector<TickContact> typeContactVector

typedef Vector<tDeleteRequest> typeDeleteVector

typedef HashMap<S32, b2Joint*> typeJointHash

typedef HashMap<U32, S32> typeReverseJointHash

Member Enumeration Documentation

enum DebugOption

Scene Debug Options.

Enumerator
SCENE_DEBUG_INVALID
SCENE_DEBUG_METRICS
SCENE_DEBUG_FPS_METRICS
SCENE_DEBUG_CONTROLLERS
SCENE_DEBUG_JOINTS
SCENE_DEBUG_WIREFRAME_RENDER
SCENE_DEBUG_AABB
SCENE_DEBUG_OOBB
SCENE_DEBUG_SLEEP
SCENE_DEBUG_COLLISION_SHAPES
SCENE_DEBUG_POSITION_AND_COM
SCENE_DEBUG_SORT_POINTS

enum PickMode

Pick mode.

Enumerator
PICK_INVALID
PICK_ANY
PICK_AABB
PICK_OOBB
PICK_COLLISION

Constructor & Destructor Documentation

Scene ( )

~Scene ( )

virtual

Member Function Documentation

void addAssetPreload ( const char * pAssetId )

void addDeleteRequest ( SceneObject * pSceneObject )

Delete requests.

void addTamlChild ( SimObject * pSimObject )

virtual

Called when Taml attempts to populate an objects children during a read.

Implements TamlChildren.

void addToScene ( SceneObject * pSceneObject )

virtual void advanceTime ( F32 timeDelta )

inlinevirtual

This method is called once every frame regardless of the return value of isProcessingTicks and informs the object of the passage of time

Implements Tickable.

void attachSceneWindow ( SceneWindow * pSceneWindow2D )

Window attachments.

void BeginContact ( b2Contact * pContact )

virtual

void clearAssetPreloads ( void )

void clearScene ( bool deleteObjects = true )

Scene occupancy.

SceneObject * create ( const char * pType )

virtual

SceneRenderRequest * createDefaultRenderRequest	(	SceneRenderQueue *	pSceneRenderQueue,
		SceneObject *	pSceneObject
	)

static

S32 createDistanceJoint	(	const SceneObject *	pSceneObjectA,
		const SceneObject *	pSceneObjectB,
		const b2Vec2 &	localAnchorA = `b2Vec2_zero`,
		const b2Vec2 &	localAnchorB = `b2Vec2_zero`,
		const F32	length = `-1.0f`,
		const F32	frequency = `0.0f`,
		const F32	dampingRatio = `0.0f`,
		const bool	collideConnected = `false`
	)

Distance joint.

S32 createFrictionJoint	(	const SceneObject *	pSceneObjectA,
		const SceneObject *	pSceneObjectB,
		const b2Vec2 &	localAnchorA = `b2Vec2_zero`,
		const b2Vec2 &	localAnchorB = `b2Vec2_zero`,
		const F32	maxForce = `0.0f`,
		const F32	maxTorque = `0.0f`,
		const bool	collideConnected = `false`
	)

Friction joint.

S32 createJoint ( b2JointDef * pJointDef )

S32 createMotorJoint	(	const SceneObject *	pSceneObjectA,
		const SceneObject *	pSceneObjectB,
		const b2Vec2	linearOffset = `b2Vec2_zero`,
		const F32	angularOffset = `0.0f`,
		const F32	maxForce = `1.0f`,
		const F32	maxTorque = `1.0f`,
		const F32	correctionFactor = `0.3f`,
		const bool	collideConnected = `false`
	)

Motor Joint.

S32 createPrismaticJoint	(	const SceneObject *	pSceneObjectA,
		const SceneObject *	pSceneObjectB,
		const b2Vec2 &	localAnchorA,
		const b2Vec2 &	localAnchorB,
		const b2Vec2 &	worldAxis,
		const bool	collideConnected = `false`
	)

Prismatic joint.

S32 createPulleyJoint	(	const SceneObject *	pSceneObjectA,
		const SceneObject *	pSceneObjectB,
		const b2Vec2 &	localAnchorA,
		const b2Vec2 &	localAnchorB,
		const b2Vec2 &	worldGroundAnchorA,
		const b2Vec2 &	worldGroundAnchorB,
		const F32	ratio,
		const F32	lengthA = `-1.0f`,
		const F32	lengthB = `-1.0f`,
		const bool	collideConnected = `false`
	)

Pulley joint.

S32 createRevoluteJoint	(	const SceneObject *	pSceneObjectA,
		const SceneObject *	pSceneObjectB,
		const b2Vec2 &	localAnchorA = `b2Vec2_zero`,
		const b2Vec2 &	localAnchorB = `b2Vec2_zero`,
		const bool	collideConnected = `false`
	)

Revolute joint.

S32 createRopeJoint	(	const SceneObject *	pSceneObjectA,
		const SceneObject *	pSceneObjectB,
		const b2Vec2 &	localAnchorA = `b2Vec2_zero`,
		const b2Vec2 &	localAnchorB = `b2Vec2_zero`,
		const F32	maxLength = `-1.0f`,
		const bool	collideConnected = `false`
	)

Rope joint.

S32 createTargetJoint	(	const SceneObject *	pSceneObject,
		const b2Vec2 &	worldTarget,
		const F32	maxForce,
		const bool	useCenterOfMass = `false`,
		const F32	frequency = `5.0f`,
		const F32	dampingRatio = `0.7f`,
		const bool	collideConnected = `false`
	)

Target (a.k.a Mouse) joint.

S32 createWeldJoint	(	const SceneObject *	pSceneObjectA,
		const SceneObject *	pSceneObjectB,
		const b2Vec2 &	localAnchorA = `b2Vec2_zero`,
		const b2Vec2 &	localAnchorB = `b2Vec2_zero`,
		const F32	frequency = `0.0f`,
		const F32	dampingRatio = `0.0f`,
		const bool	collideConnected = `false`
	)

Weld joint.

S32 createWheelJoint	(	const SceneObject *	pSceneObjectA,
		const SceneObject *	pSceneObjectB,
		const b2Vec2 &	localAnchorA,
		const b2Vec2 &	localAnchorB,
		const b2Vec2 &	worldAxis,
		const bool	collideConnected = `false`
	)

Wheel joint.

DECLARE_CONOBJECT ( Scene )

Declare Console Object.

bool deleteJoint ( const U32 jointId )

void detachAllSceneWindows ( void )

void detachSceneWindow ( SceneWindow * pSceneWindow2D )

void EndContact ( b2Contact * pContact )

virtual

b2Joint * findJoint ( const S32 jointId )

S32 findJointId ( b2Joint * pJoint )

const AssetPtr< AssetBase > * getAssetPreload ( const S32 index ) const

S32 getAssetPreloadCount ( void ) const

inline

SimSet& getAttachedSceneWindows ( void )

inline

bool getBatchingEnabled ( void ) const

inline

const typeContactHash& getBeginContacts ( void ) const

inline

b2BlockAllocator* getBlockAllocator ( void )

inline

SimSet* getControllers ( void )

inline

U32 getDebugMask ( void ) const

inline

const char * getDebugOptionDescription ( Scene::DebugOption debugOption )

static

Scene::DebugOption getDebugOptionEnum ( const char * label )

static

SceneObject* getDebugSceneObject ( void ) const

inline

DebugStats& getDebugStats ( void )

inline

F32 getDistanceJointDampingRatio ( const U32 jointId )

F32 getDistanceJointFrequency ( const U32 jointId )

F32 getDistanceJointLength ( const U32 jointId )

const typeContactVector& getEndContacts ( void ) const

inline

F32 getFrictionJointMaxForce ( const U32 jointId )

F32 getFrictionJointMaxTorque ( const U32 jointId )

U32 getGlobalSceneCount ( void )

static

b2Vec2 getGravity ( void )

inline

static const char* getGravity	(	void *	obj,
		const char *	data
	)

inlinestaticprotected

b2Body* getGroundBody ( void ) const

inline

bool getIsEditorScene ( void ) const

inline

U32 getJointCount ( void ) const

inline

Joint access.

b2JointType getJointType ( const S32 jointId )

const char * getJointTypeDescription ( b2JointType jointType )

static

b2JointType getJointTypeEnum ( const char * label )

static

SceneRenderQueue::RenderSort getLayerSortMode ( const U32 layer )

F32 getMotorJointAngularOffset ( const U32 jointId )

b2Vec2 getMotorJointLinearOffset ( const U32 jointId )

F32 getMotorJointMaxForce ( const U32 jointId )

F32 getMotorJointMaxTorque ( const U32 jointId )

virtual ePhysicsProxyType getPhysicsProxyType ( void ) const

inlinevirtual

Implements PhysicsProxy.

const char * getPickModeDescription ( Scene::PickMode pickMode )

static

Scene::PickMode getPickModeEnum ( const char * label )

static

S32 getPositionIterations ( void ) const

inline

bool getPrismaticJointLimit	(	const U32	jointId,
		bool &	enableLimit,
		F32 &	lowerTranslation,
		F32 &	upperTranslation
	)

bool getPrismaticJointMotor	(	const U32	jointId,
		bool &	enableMotor,
		F32 &	motorSpeed,
		F32 &	maxMotorTorque
	)

bool getRenderCallback ( void ) const

inline

F32 getRevoluteJointAngle ( const U32 jointId )

bool getRevoluteJointLimit	(	const U32	jointId,
		bool &	enableLimit,
		F32 &	lowerAngle,
		F32 &	upperAngle
	)

bool getRevoluteJointMotor	(	const U32	jointId,
		bool &	enableMotor,
		F32 &	motorSpeed,
		F32 &	maxMotorTorque
	)

F32 getRevoluteJointSpeed ( const U32 jointId )

F32 getRopeJointMaxLength ( const U32 jointId )

U32 getSceneIndex ( void ) const

inline

SceneObject * getSceneObject ( const U32 objectIndex ) const

U32 getSceneObjectCount ( void ) const

inline

typeSceneObjectVectorConstRef getSceneObjects ( void ) const

inline

U32 getSceneObjects ( typeSceneObjectVector & objects ) const

U32 getSceneObjects	(	typeSceneObjectVector &	objects,
		const U32	sceneLayer
	)		const

bool getScenePause ( void ) const

inline

F32 getSceneTime ( void ) const

inline

Scene time.

SimObject * getTamlChild ( const U32 childIndex ) const

virtual

Called when Taml attempts to compile a list of children.

Implements TamlChildren.

virtual U32 getTamlChildCount ( void ) const

inlinevirtual

Taml children.

Implements TamlChildren.

F32 getTargetJointDampingRatio ( const U32 jointId )

F32 getTargetJointFrequency ( const U32 jointId )

F32 getTargetJointMaxForce ( const U32 jointId )

b2Vec2 getTargetJointTarget ( const U32 jointId )

bool getUpdateCallback ( void ) const

inline

S32 getVelocityIterations ( void ) const

inline

F32 getWeldJointDampingRatio ( const U32 jointId )

F32 getWeldJointFrequency ( const U32 jointId )

F32 getWheelJointDampingRatio ( const U32 jointId )

F32 getWheelJointFrequency ( const U32 jointId )

bool getWheelJointMotor	(	const U32	jointId,
		bool &	enableMotor,
		F32 &	motorSpeed,
		F32 &	maxMotorTorque
	)

b2World* getWorld ( void ) const

inline

World.

WorldQuery* getWorldQuery ( const bool clearQuery = false )

inline

bool hasJoints ( SceneObject * pSceneObject )

void initPersistFields ( )

static

void interpolateTick ( F32 delta )

virtual

This method is called every frame and lets the control interpolate between ticks so you can smooth things as long as isProcessingTicks returns true when it is called on the object

Implements Tickable.

bool isSceneWindowAttached ( SceneWindow * pSceneWindow2D )

void mergeScene ( const Scene * pScene )

bool onAdd ( void )

virtual

Engine.

Reimplemented from BehaviorComponent.

void onDeleteNotify ( SimObject * object )

virtual

Called when a SimObject is deleted.

When you are on the notification list for another object and it is deleted, this method is called.

Reimplemented from BehaviorComponent.

void onRemove ( )

virtual

Called when the object is removed from the sim.

Reimplemented from BehaviorComponent.

void onTamlCustomRead ( const TamlCustomNodes & customNodes )

protectedvirtual

Called during the reading of the object to allow custom properties to be read.

Reimplemented from BehaviorComponent.

void onTamlCustomWrite ( TamlCustomNodes & customNodes )

protectedvirtual

Taml callbacks.

Reimplemented from BehaviorComponent.

void onTamlPostRead ( const TamlCustomNodes & customNodes )

protectedvirtual

Called after Taml has finished reading the object. The custom properties is additionally passed here for object who want to process it at the end of reading.

Reimplemented from SimObject.

void onTamlPreRead ( void )

protectedvirtual

Taml callbacks.

Reimplemented from SimObject.

void PostSolve	(	b2Contact *	pContact,
		const b2ContactImpulse *	pImpulse
	)

virtual

virtual void PreSolve	(	b2Contact *	pContact,
		const b2Manifold *	pOldManifold
	)

inlinevirtual

Contact processing.

void processDeleteRequests ( const bool forceImmediate )

void processTick ( void )

virtual

Integration.

Implements Tickable.

void removeAssetPreload ( const char * pAssetId )

void removeFromScene ( SceneObject * pSceneObject )

void resetDebugStats ( void )

inline

void SayGoodbye ( b2Joint * pJoint )

virtual

Destruction listeners.

virtual void SayGoodbye ( b2Fixture * pFixture )

inlinevirtual

void sceneRender ( const SceneRenderState * pSceneRenderState )

Render output.

void setBatchingEnabled ( const bool enabled )

inline

Miscellaneous.

void setDebugOff ( const U32 debugMask )

inline

void setDebugOn ( const U32 debugMask )

inline

Debug and metrics.

void setDebugSceneObject ( SceneObject * pSceneObject )

void setDistanceJointDampingRatio	(	const U32	jointId,
		const F32	dampingRatio
	)

void setDistanceJointFrequency	(	const U32	jointId,
		const F32	frequency
	)

void setDistanceJointLength	(	const U32	jointId,
		const F32	length
	)

void setFrictionJointMaxForce	(	const U32	jointId,
		const F32	maxForce
	)

void setFrictionJointMaxTorque	(	const U32	jointId,
		const F32	maxTorque
	)

void setGravity ( const b2Vec2 & gravity )

inline

static bool setGravity	(	void *	obj,
		const char *	data
	)

inlinestaticprotected

Physics.

void setIsEditorScene ( bool status )

inline

void setLayerSortMode	(	const U32	layer,
		const SceneRenderQueue::RenderSort	sortMode
	)

Layer sorting.

void setMotorJointAngularOffset	(	const U32	jointId,
		const F32	angularOffset
	)

void setMotorJointLinearOffset	(	const U32	jointId,
		const b2Vec2 &	linearOffset
	)

void setMotorJointMaxForce	(	const U32	jointId,
		const F32	maxForce
	)

void setMotorJointMaxTorque	(	const U32	jointId,
		const F32	maxTorque
	)

void setPositionIterations ( const S32 iterations )

inline

void setPrismaticJointLimit	(	const U32	jointId,
		const bool	enableLimit,
		const F32	lowerTranslation,
		const F32	upperTranslation
	)

void setPrismaticJointMotor	(	const U32	jointId,
		const bool	enableMotor,
		const F32	motorSpeed = `b2_pi`,
		const F32	maxMotorForce = `0.0f`
	)

void setRenderCallback ( const bool callback )

inline

void setRevoluteJointLimit	(	const U32	jointId,
		const bool	enableLimit,
		const F32	lowerAngle,
		const F32	upperAngle
	)

void setRevoluteJointMotor	(	const U32	jointId,
		const bool	enableMotor,
		const F32	motorSpeed = `b2_pi`,
		const F32	maxMotorTorque = `0.0f`
	)

void setRopeJointMaxLength	(	const U32	jointId,
		const F32	maxLength
	)

void setScenePause ( bool status )

inline

void setTargetJointDampingRatio	(	const U32	jointId,
		const F32	dampingRatio
	)

void setTargetJointFrequency	(	const U32	jointId,
		const F32	frequency
	)

void setTargetJointMaxForce	(	const U32	jointId,
		const F32	maxForce
	)

void setTargetJointTarget	(	const U32	jointId,
		const b2Vec2 &	worldTarget
	)

void setUpdateCallback ( const bool callback )

inline

void setVelocityIterations ( const S32 iterations )

inline

void setWeldJointDampingRatio	(	const U32	jointId,
		const F32	dampingRatio
	)

void setWeldJointFrequency	(	const U32	jointId,
		const F32	frequency
	)

void setWheelJointDampingRatio	(	const U32	jointId,
		const F32	dampingRatio
	)

void setWheelJointFrequency	(	const U32	jointId,
		const F32	frequency
	)

void setWheelJointMotor	(	const U32	jointId,
		const bool	enableMotor,
		const F32	motorSpeed = `b2_pi`,
		const F32	maxMotorTorque = `0.0f`
	)

static bool writeGravity	(	void *	obj,
		StringTableEntry	pFieldName
	)

inlinestaticprotected

static bool writeLayerSortMode	(	void *	obj,
		StringTableEntry	pFieldName
	)

inlinestaticprotected

static bool writePositionIterations	(	void *	obj,
		StringTableEntry	pFieldName
	)

inlinestaticprotected

static bool writeRenderCallback	(	void *	obj,
		StringTableEntry	pFieldName
	)

inlinestaticprotected

static bool writeUpdateCallback	(	void *	obj,
		StringTableEntry	pFieldName
	)

inlinestaticprotected

static bool writeVelocityIterations	(	void *	obj,
		StringTableEntry	pFieldName
	)

inlinestaticprotected

Member Data Documentation

SimObjectPtr< Scene > LoadingScene = NULL

static

DebugDraw mDebugDraw

Debug drawing.

The documentation for this class was generated from the following files:

2d/scene/Scene.h
2d/scene/Scene.cc

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Static Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
